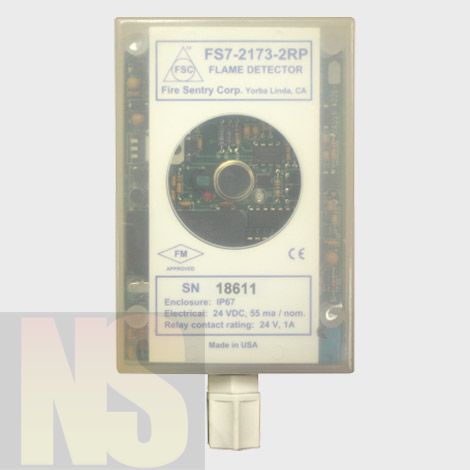

Honeywell Fire Sentry FS17X Fire and Flame Detector
Honeywell Analytics Fire Sentry FS17X Fire and Flame Detector.
The Fire Sentry FS17X Electro-Optical Multi-Spectral detector senses the WideBand Infrared™ (IR) radiant energy of blackbody particulate and molecular emissions generated by both hydrocarbon and non-hydrocarbon flames and fires.
Additionally, the detector’s sensor array senses Visible Band (VIS) and NearBand IR to further discriminate against false fire sources. The FS17X WideBand Multi-Spectral sensor array spans 0.4 to 3.0 microns and features a wide 120° field of view. This fire and flame detector is Factory Mutual approved for use in Class I, Division 2 (Zone 2) hazardous locations. It is available in a polypropylene housing, is rated IP67, dust tight, leak-proof and water tight to 1 meter.
Features
- -Multi-Spectral digital electro-optical radiant energy infrared fire detector
- -Detects hydrocarbon and non-hydrocarbon fires
- -Polypropylene housing
- -IP67 rated
- -Wide 120° field-of-view
- -Digital communication with RS-485 interface
- -FirePic™; time and date-stamped digital fire signatures
