Econ - 37 Gallon With Drench Hose

SKU
ECS011-060

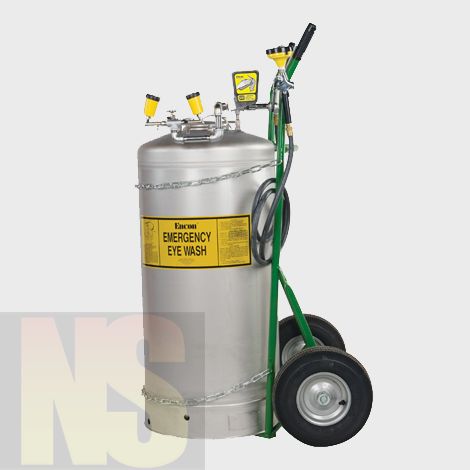

Econ - 37 Gallon With Drench Hose

Encon Safety Products' Pressurized Portable Eyewash Stations self-contained eyewash will provide proper irrigation for the fifteen-minute flushing period, as is the minimum requirement of the current ANSI Z358.1 performance standard for emergency shower and eyewash equipment. The self-regulated ABS plastic dual stream heads on a fixed extension provide non-injurious .4 gpm flow in a proper pattern to promote usage for the full 15 minutes. The stay-open actuator ball valve is pictorially marked and the integral maintenance and operation graphics provide excellent awareness for the eyewash location.

Filling with potable water, use of the Hydrosep® additive and pressurization with air will provide emergency station availability for over ninety days before maintenance is required. The brass pressure relief valve offers over pressure protection and the customfaced gauge make visual inspection simple and easy. Covers, attached with stainless steel bead chains, are provided to protect the delivery heads against airborne contaminants as the equipment is in the workplace ready for use.

Piping and Valves: ½″ BCP piping; ½″ CP bronze stay-open ball valve with CP ball; SS valve stem; SS push plate with actuation graphic

Eyewash: ABS plastic heads and BCP Wye with SS bead chains securing covers; self-adjusting 0.4 gpm (1.5 lpm)

Tank: 37-gallon is ASME.

Relief Valve: Brass; automatically opens at 110 psi

Gauge: Custom face gauge visually indicates tank pressure status

Water Treatment Additive: Two bottles of 8oz. Hydrosep®; each bottle treats 5 to 20 gallons for 180 days

Drench Hose Option

  • Valve - 3⁄8″ BCP, self-closing, lock-open handle
  • Head - Solvent-resistant ABS single spray head; selfadjusting 5.0 gpm (18.75 lpm)

Cart : Tubular steel with retaining chains

Available Models:

Specifications
Model Description
01106001 Eyewash With Drench Hose and Cart
01106002 Eyewash With Drench Hose, No Cart

Available Options:

Model Description
01110764  Hydrosep®, 4 - 8oz. Bottles
