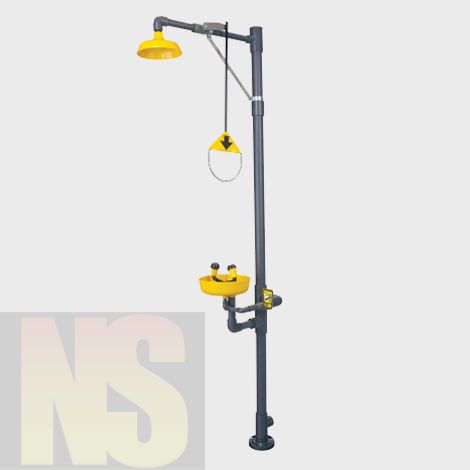

Econ - PVC Combination Shower / Eyewash

Econ - PVC Combination Shower / Eyewash

Piping and Valve: Schedule 80 corrosionresistant PVC piping with socket weld joints.

Eye/Facewash - ½″ Polane® coated bronze valve with CP ball, SS valve stem, SS push plate with actuation graphic.

Shower - 1″ shower Polane® coated bronze stay-open ball valve with CP ball, pull rod assembly with actuation graphic.

Shower Head: High visibility ABS plastic; selfadjusting 20 or 30 gpm (113.6 lpm)*; delivers minimum of 20″ (50.8 cm) diameter, dispersed pattern for target area of 60″ (152.4 cm) above standing level.

Eye/Facewash Choices:

• Eyewash - ABS plastic heads, Wye and float off covers secured with SS bead chains; self-adjusting regulator to flow at 3.2 gpm (12.1 lpm)*
• Facewash - ABS plastic heads, Wye and float off covers secured with SS bead chains; Option for BCP Wye; Self-adjusting regulator to flow at 8.0 gpm (30.3 lpm)*

Bowl: ABS plastic Yello-Bowl®, 10.8″ diameter.

Supply: 1½″ NPT connection

Waste: 1½″ NPT connection on models with bowls
