MiniRAE 3000

*Hazmat Shipping fee is included on Calibration Kits. Standard Shipping rates will apply*

$5,445.00
SKU
RAE059-B

MiniRAE 3000 Hand-held VOC Monitor (0-15,000ppm) -

The MiniRAE 3000 is the most advanced handheld volatile organic compound (VOC) on the market. Its Photoionization Detector’s (PID) extended range of 0 to 15,000 ppm makes it an ideal instrument for applications from industrial hygiene, to leak and hazmat detection.

The RF modem allows real-time data transmissions with a base controller located up to 500 feet (or two-miles with optional RAELink2 wired portable modem) or (RAELink3 is Bluetooth Wireless)away from the MiniRAE 3000 detector. A personal computer can be used as the base station for a Mini-RAE 3000 system. The standard ProRAE Remote software is capable of monitoring the input of up to 64 remotely-located monitors like MiniRAE 3000, or AreaRAE, etc.

MiniRAE 3000 - Datasheet

Additional Advantages:

• View real-time sensor data and alarm status at headquarters or command Center
• Automatic lamp type recognition
• Duty-cycling™ lamp and sensor autocleaning technology
• Tough, flexible inlet Flexi-Probe™
• Large 3 keys operable with 3 layers of gloves
• Strong, built-in sample pump draws up to 100 feet (30m) horizontally or vertically
• Loud 95 dB audible alarm
• Bright red flashing visual alarm
• Interchangeable Drop-In Lithium-ion and alkaline battery packs
• Charging cradle doubles as an external battery charger
• Compatible with AutoRAE™ calibration station
• ProRAE Remote software simultaneously controls and displays readings for up to 64 remote detectors
• License free, ISM band RF transmission with communication range up to 500 feet 2 miles (with optional)
• Optional RAELink III modem provides GPS capability to track and display readings from remote detectors as well as 2 miles long distance transmission
• Data logging with up to 6 months of data at one-minute intervals
• 3-year 10.6eV lamp Warranty

Monitor Only Includes -
- MiniRAE 3000 Monitor
- Datalogging with ProRAE Studio Software
- Travel Download Charger
- RAE UV Lamp (as specified)
- Flex-I-Probe
- External Filter

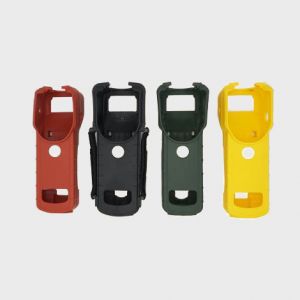

- Yellow Rubber Boot
- Alkaline Battery Adapter
- Lamp Cleaning Tool Kit
- Resources CDROM and maintenance manual
- Soft Leather Case

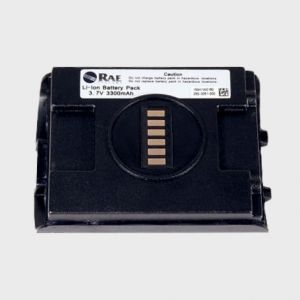

- *Lithium-Ion Rechargeable Battery, Universal AC/DC adapter and universal plug kit
- *Wireless Bluetooth Communication (to use with RAELink 3,ProRAE Remote)

* If specified on configuration.

MiniRAE 3000 Accessory Kit Options:
Accessory Kit includes - Hard transport case with precut foam, Charging / Download cradle ( instead of travel charger ), 5 porous metal filters and O-Rings, Gas outlet port adapter, Organic Zeroing Kit and tubing.

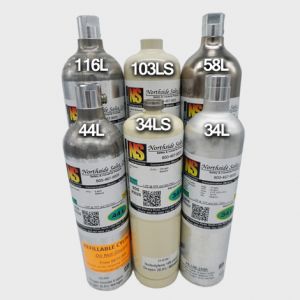

Accessory & Calibration Kit includes - 100 ppm Isobutylene Calibration gas 34 Liter Bottle, Regulator & Flow Controller, Hard transport case with precut foam, Charging / Download cradle ( instead of travel charger ), 5 porous metal filters and O-Rings, Gas outlet port adapter, Organic Zeroing Kit and tubing.

Specifications

Additional Advantages:

• View real-time sensor data and alarm status at headquarters or command Center
• Automatic lamp type recognition
• Duty-cycling™ lamp and sensor autocleaning technology
• Tough, flexible inlet Flexi-Probe™
• Large 3 keys operable with 3 layers of gloves
• Strong, built-in sample pump draws up to 100 feet (30m) horizontally or vertically
• Loud 95 dB audible alarm
• Bright red flashing visual alarm
• Interchangeable Drop-In Lithium-ion and alkaline battery packs
• Charging cradle doubles as an external battery charger
• Compatible with AutoRAE™ calibration station
• ProRAE Remote software simultaneously controls and displays readings for up to 64 remote detectors
• License free, ISM band RF transmission with communication range up to 500 feet 2 miles (with optional)
• Optional RAELink III modem provides GPS capability to track and display readings from remote detectors as well as 2 miles long distance transmission
• Data logging with up to 6 months of data at one-minute intervals
• 3-year 10.6eV lamp Warranty
