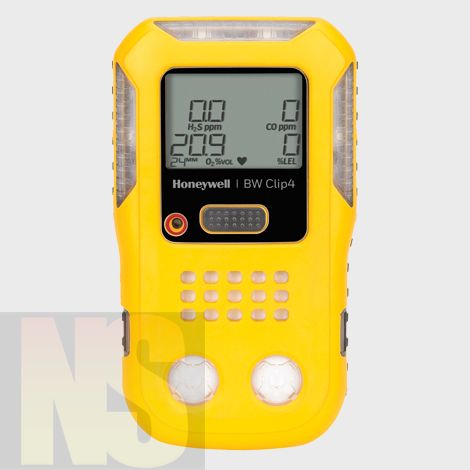

BW Honeywell - Clip4 Yellow
BW Honeywell Clip 4 Gas Monitor (H2S, CO, O2, LEL) -
Need a no hassle gas detection tha you can count on, then the BW Clip 4 four-gas detector is what you need. It is a wearable easy multi-gas detection monitor that is always on. There is no need to charge it, no battery replacement and no hassle. With a low cost of ownership and Honeywell's commitment to quality you know your in good hands. Once it is activated it will continue to run for 2 years, lowering your maintenence costs wihtout charging and no battery or sensor replacemnts. All you have to do is turn it on and then your good for two years! Get yourself one today!
| Size | 4.7 x 2.7 x 1.3 in. / 12.0 x 6.8 x 3.2 cm |
| Weight | 8.2 oz. / 233g (0.5 lbs) |
| Operating Temperature | -4 to +131°F / -20 to +50°C |
| Humidity | 5 - 95% RH (non-condensing) continuous |
| Ingress Protection | IP68 |
| Alarms and Type | Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, OL (over limit) |
| Self-Test | Activated detectors automatically perform one internal diagnostic test every 24 hours (sensors, battery, and circuitry). |
| Typical Battery Life | Two years, continous operation |
| Event Logging | 70 most recent events |
| User Options |
|
| Certifications and Approvals |
UL: Class I, Div 1, Group A, B, C, D Class I, Zone 0, Group IIC ATEX: II 1G Ex ia IIC T4 Ga IECEx: Ex ia IIC T4 Ga
For additional certifications, please review the manual or consult Honeywell Analytics |
| Warranty | Full two-year warranty including sensors and battery |
: Conforms to all applicable European directivesSensor Specifications
| Gases | Standard Measuring Range | Resolution |
| Hydrogen Sulfide (H2S) | 0-100ppm | 1/0.1 ppm |
| Carbon Monoxide (CO) | 0-1,000 ppm | 1 ppm |
| Oxygen (O2) | 0-25% vol. | 0.1% vol. |
| Combustible Gases (LEL)* | 0-100% LEL | 1% LEL |
* Caution – the LED IR combustible gas sensor used in BW Clip4 cannot detect certain combustible gases including hydrogen and acetylene. The application should be reviewed to ensure the BWClip4 can provide adequate detection. For more information, please contact Honeywell Analytics (www.honeywellanalytics.com).
Features
- - Easy to Wear
- - Durable, Ergonomic & wearable -- doesn't wear you down
- - Compact Profile -- even working in tight spaces, you wont know your wearing it
- - Easy to Use
- - Simple one-button operation
- - User-friendly tamper-proof operation with just one button
- - Intuitive LCD icons
- - Real-time gas concentrations shown on LCD
- - Easy Compliance
- - Flashing red non-compliance indicatiors warn workers that the detector has not been bump tested according to schedule
- - Daily full function self-test of sensors, battery status, circuit integrity, and audible/visual alarms
- - Easy to Manage
- - Compatible with IntelliDoX docking system and instrument management system
- - Easy to Rely On
- - Built-in concussion proof boot
- - Tested to las in extreme environments
