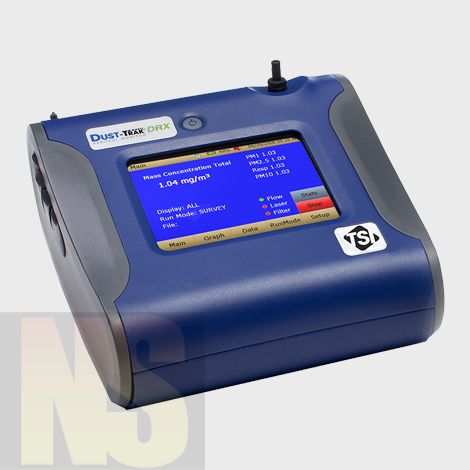

DustTrak™ DRX Aerosol Monitor - Rental

Specifications:

Sensor Type

90° light scattering

Particle Size Range

0.1 to 15 μm

Aerosol Concentration Range

0.001 to 150mg/m³

Display

Size Segregated Mass Fractions for PM1, PM2.5, Respirable, PM10 and Total

Resolution

±0.1% of reading or 0.001 mg/m³, whichever is greater

Zero Stability

±0.002 mg/m³ per 24 hours at 10 sec time constant

Flow Rate

3.0 L/min

Flow Accuracy

±5% of factory set point, internal flow controlled

Temperature Coefficient

+0.001 mg/m³ per °C

Operational Temp

32 to 120°F (0 to 50°C)

Storage Temp

-4 to 140°F (-20 to 60°C)

Operational Humidity

0 to 95% RH, non-condensing

Time Constant

User adjustable, 1 to 60 seconds

Data Logging

5 MB of on-board memory (>60,000 data points)

45 days at 1 minute logging interval

Log Interval

User adjustable, 1 second to 1 hour

Physical Size (HxWxD)

5.3x8.5x8.8 in. (13.5x21.6x22.4 cm)

Weight

3.5 lb without battery

Communications

USB (host and device) and Ethernet. Stored data accessible using flash memory drive

Power-AC

Switching AC power adapter with universal line cord included, 115-240 VAC

Analog Out

User selectable output, 0 to 5 V or 4 to 20 mA

User selectable scaling range

Alarm Out

Relay or audible buzzer

Non-latching MOSFET switch (User selectable set point, -5% deadband, Connecter 4-pin Mini-DIN connectors)

Screen

5.7 in. VGA color touchscreen

Gravimetric Sampling

Removable 37mm cartridge (user supplied)

CE Rating

Immunity – EN61236-1:2006

Emissions – EN61236-1:2006
