Draeger X-am® 3500 Multi-Gas Monitors - Rental
Draeger X-am® 3500 -

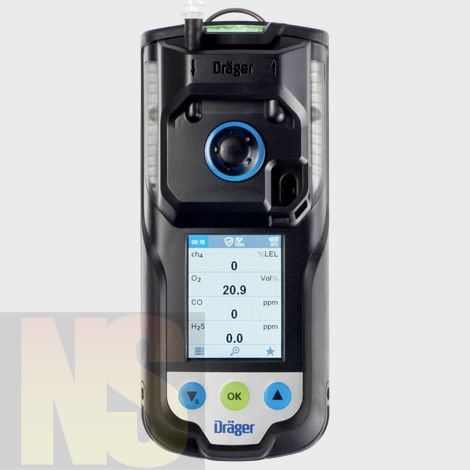

The Draeger X-am® 3500 was especially designed for clearance measurements and personnel monitoring applications. The 1 to 4 gas detector reliably detects flammable gases and vapors as well as O2, CO, H2S, NO2 and SO2. The innovative signaling design and extensive range of accessories ensure optimum safety and easy handling. Specifically designed to use with a pump, the pump adapter can be removed and the X-am 3500 can be used as a diffusion instrument. Similar in design as the seven-gas sensor X-am 8000 series, but as a four-gas sensor option.
– Measures the following:
(CO) - Carbon Monoxide
(H2S) - Hydrogen Sulfide
(Methane) - UL/CSA Combustible %LEL / %VOL (%VOL ranges setup in CC Vision software)
(Methane) - MSHA Combustible %VOL (%VOL ranges setup in CC Vision software)
(O2) - Oxygen
(SO2) - Sulfur Dioxide
(NO2) - Nitrogen Dioxide
- User Configurable settings with CC-Vision Software by Draeger
- Price breaks for orders in quantities of 10/ 50/ 100 / 200 / 500
Monitor Only Includes:
- Monitor with Selected Sensor(s)
- Pump is standard on the X-am 3500, can be removed for diffusion monitoring
- Rechargeable battery with Inductive Charger Kit
- Calibration Certificate
- Manual / Guide
Telescopic Probe / Tubing Kit Adds:
- Tygon Tubing 20ft with adapter only (Great for standard gases like Co, H2S, LEL and O2)
- Teflon Tubing 20ft with adapter only (Great for exotic gases like NO2 and SO2)
- FKM Tubing 20ft with adapter only (FKM is Solvent Resistant Tubing)
- Telescopic Probe 59" Only
- Telescopic Probe ES150 59" w/ Tygon Tubing
- Telescopic Probe ES150 59" w/ Teflon Tubing
- Telescopic Probe ES150 59" w/ FKM Tubing
Calibration Kit Includes / Adds:
- Stainless Steel Regulator(s) depending upon gas selection
- 34/44/58/116 Liter Cylinders Calibration Gases (specifc gases per selected sensor(s)
- 4 Gas Mix = CO, H2S, LEL -Methane, O2, Bal N2.
*(please note we offer other calibration kits depending upon sensor configuration on monitor, please call)
Optional Protective Cases / Adds:
- Draeger Custom Foam Cut Case for X-am 3500 and 8000 Series monitors.
- Pelican Case - Airtight / Waterproof / Dustproof with Pick n Pluck Foam - Colors may Vary.
| Description | Mesuring Range | Alarm Threshold A1/A2 (standard) | Measuring Resolution | Sensor Order Number |
| Draeger X-am® 3500 Carbon Monoxide - CO | 0-2000ppm | 35 / 50ppm | 1ppm | 6813210 |
| Draeger X-am® 3500 Hydrogen Sulfide - H2S | 0-100ppm | 10 / 15ppm | 0.1ppm | 6811525 |
| Draeger X-am® 3500 - %LEL Methane *UL/CSA Approved 2 - 5-100 %VOL only when selected |
0 - 100% LEL 0 - 5.0% Vol. 5 - 100% Vol.2 |
10 / 20% LEL |
1% LEL 0.1%Vol. 1.0% Vol. |
6812950 |
| Draeger X-am® 3500 - %VOL Methane *MSHA Approved 2 - 5-100 %VOL only when selected |
0 - 5.0% Vol. 5 - 100% Vol.2 |
0.5 / 1.0 % Vol |
0.1% Vol. 1.0% Vol. |
6813080 |
| Draeger X-am® 3500 Oxygen - O2 | 0-25% Vol | 19.5 / 23.5% Vol | 0.1% Vol | 6810881 |
| Draeger X-am® 3500 Sulfur Dioxide - SO2 | 0-50ppm | 2 / 4ppm | 0.1ppm | 6810885 |
| Draeger X-am® 3500 Nitrogen Dioxide - NO2 | 0-50ppm | 2.5 / 5.0ppm | 0.1ppm | 6810884 |
Draeger X-am® 3500 Specifications-
| Dimensions (without clip) (W x H x D) | 7.0" x 3.0" x 1.7" (179 x 77 x 42 mm) |
| Weight | Approx. 495 g (17.5 ounces), depending on sensor configuration, without strap, without pump Approx. 550 g (19.4 ounces), depending on sensor configuration, without strap, with pump |
| Operating Times | With CatEx and 3 EC sensors Typically 24 hours With 3 EC-sensors Typically 120 hours |
| Charging Times | Typically 4 hours after use during a shift of max. 10 hours |
| Pump Operation | Max. hose length 147.6 feet (45 m) |
| Alarms | Visual = 3 LED 'red' (gas alarms), 3 LED 'yellow' (device alarms) Acoustic = Multi-tone, typically 100 dB(A) at 30 cm Vibration |
| Datalogger | 12 MB, e.g. at 10 minutes per hour of gas exposure with measuring values changing by the second on all 4 channels: approx. 300 hours |
| Protection class | IP 67 |
| Air pressure | 700 to 1300 mbar |
| Air humidity | 10 to 90% (short-term up to 95%) r.h. |
| Temperature | -4°F to 122°F (-20 °C to +50 °C) |
| Warranty | 3 years for the device and CO, H2S, LEL, O2 sensors. 1 year for the power supply Sensors: see DraegerSensor® & Portable Instruments Handbook (below) |
| Approvals: IECEx, ATEX cCSAus |
I M1, II 1G Ex da ia I Ma, Ex da ia IIC T4 Ga / Metrological approval pending Class II, Div 1, Gr. E, F, G T4 C22.2 No. 152, ANSI-ISA 12.13.01:2000 |
Draeger X-am® Series Sensor and Warranty Chart-
Draeger X-am® Series Sensor and Warranty Chart
Specially designed for use with a pump, optimized for clearance measurement-
The Draeger X-am 3500 is equipped with a very powerful pump. It can be connected with hoses up to 147 ft (45 meters) long. A pump adapter makes it easy to switch between diffusion and pump mode at any time. This means the pump is only operated when you actually need it. That saves energy, reduces wear and tear, and thereby extends the lifespan of the pump. Handy and durable, the Draeger X-am 3500 is intuitive to operate with one-handed operation using three
function keys. The easy-to-read color display clearly lays out all the information for you. Thanks to its compact and robust construction, the device can withstand even the harshest conditions.
Inductive charging protects against wear and tear-
The X-am 3500 features inductive charging. This makes it easier to operate and increases the lifespan of the device. Issues like corrosion and contact problems in the charging cradle are a thing of the past. You can charge (outside of explosion-hazard zones) and measure simultaneously, e.g, when in use inside vehicles or on machinery. The charging cradles can connect with one another, taking up minimal space, and are compatible with existing Dräger X-am® series cradles.
Exremely Clear and Easy to Read Display-
The X-am 3500 features a full color display with day and night modes. This makes it easier for the safety attendant / worker to see the display clearly no matter what time of day it is.
Long-lasting, reliable sensor technology-
The innovative, catalytic Ex sensor has a high degree of drift stability with a high resistance to silicone and hydrogen sulfide. The sensor boasts an expected service life of more than five years and is extremely sensitive to flammable gases and vapors.
Clear signaling design-
The signal system of the Dräger X-am 3500 is based on a clear color code, in accordance with the requirements of EN 60079-29-1, EN 45544-1 and EN 50104:
‒ Red light = gas alarm
‒ Yellow light = device-related alarm, e.g. low battery
‒ Green light = device is ready for use
The green glow of the D-light allows you to see from a distance whether the device has been properly tested
and is ready for use.
In case of an alarm, the X-am 3500 alerts you with colorful alarm LEDs, a loud horn (100 dB(A) at a distance of 1 foot / 30 cm), and clearly noticeable vibration. Four preset hazard symbols are available as an option for the display which explicitly indicate the presence of explosive or toxic gas hazards, for example. This allows the user to easily recognize the type of hazard based purely on the symbol displayed.
Diffusion or Pumped-
The external / removeable pump with a hose up to 147.6ft long is available for use in tanks and shafts or when searching for leaks. The switch from diffusion to pump operation can be handled quickly and easily without tools or screws.
X-dock compatibility-
The X-am 3500 is compatible with Draeger’s X-dock testing and calibration station. X-dock is Draeger’s new solution for efficient maintenance and comprehensive equipment management. Used for functional testing and complete documentation, X-dock can complete bump tests in 8 to 15 seconds with more than 40 % less gas consumption than competitive instruments. The Draeger X-am 3500 is also compatible with the Draeger Bump Test Station.
