MultiRAE Lite - Internal Pump
* Cannot use Chlorine Dioxide and Hydrogen Sulfide sensors in the same unit.
* Cannot use Nitric Oxide and Ammonia sensor in the same unit.
* NDIR % Vol Combustible Sensors must be accompanied by the Catalytic "LEL" sensor.

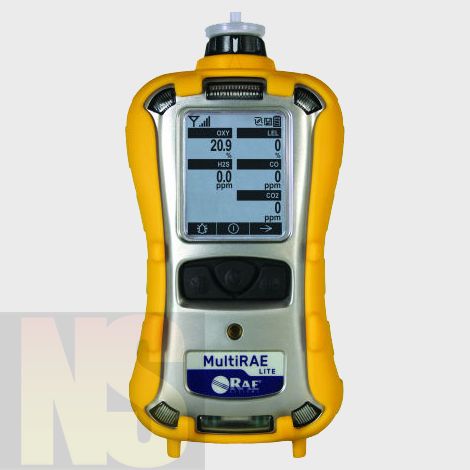

MultiRAE Lite - Wireless Portable Multi-Gas Monitor with internal pump (PGM-6208) by RAE Systems -
The New MultiRAE Lite is an optimal one-to-six-gas wireless monitoring solution for personal protection (including confined space entry) and multi-gas leak detection applications. Available in pumped and diffusion versions, the MultiRAE Lite can be configured with up to 30 sensor options (including PID and NDIR) to fully meet the monitoring needs of a variety of applications.
The instrument boasts the largest display and longest battery runtime in its class (with an optional extended battery), as well as an ergonomically contoured case that is rugged, dust-tight and waterproof (IP-65 rating (pumped), IP-67 rating (diffusion)). A compartmentalized design of the MultiRAE Lite makes the replacement of its intelligent sensors, pump, and plug-and-play battery simple, even in the field, and the AutoRAE 2 Automatic Test and Calibration System ensures bump testing and calibration of up to 10 instruments is as easy as a6press of a button.
When deployed on RAE Systems’ Dedicated Wireless Network, the MultiRAE Lite provides safety officers wireless access to real-time instrument readings and alarm status for better visibility and faster incident response. The MultiRAE five-way notification system for gas and Man Down alarms immediately alerts the user, people working in the vicinity, and safety officers at the command center if a hazardous atmosphere has been detected or a person has been overcome.
MultiRAE Lite Gas Monitor Specification Sheet
The New MultiRAE Family Video
| PID Sensor | Range | Resolution |
| VOC 10.6 eV | 0 to 1,000 ppm | 1 ppm |
| Combustible Sensors | Range | Resolution |
| Catalytic LEL | 0 to 100% LEL | 1% LEL |
| NDIR (0-100% LEL Methane) | 0 to 100% LEL | 1% LEL |
| NDIR (0-100% Vol. Methane) | 0 to 100% Vol. | 0.1% Vol. |
| Carbon Dioxide CO2 NDIR Sensor | Range | Resolution |
| CO2 NDIR HR Carbon Dioxide (CO2) NDIR Sensor |
0 to 50,000 ppm |
100 ppm |
| Electrochemical Sensors | Range | Resolution |
| Ammonia (NH3) | 0 to 100 ppm | 1 ppm |
| Carbon Monoxide (CO) | 0 to 500 ppm | 1 ppm |
| Carbon Monoxide (CO), Ext Range | 0 to 2,000 ppm | 10 ppm |
| Carbon Monoxide (CO), H2-comp. | 0 to 2,000 ppm | 10 ppm |
| Carbon Monoxide (CO) Hydrogen Sulfide (H2S) - Combo |
0 to 500 ppm 0 to 200 ppm |
1 ppm 0.1 ppm |
| Chlorine (Cl2) | 0 to 50 ppm | 0.1 ppm |
| Chlorine Dioxide (Cl02) | 0 to 1 ppm | 0.03 ppm |
| Ethylene Oxide (Et0-A) | 0 to 100 ppm | 0.5 ppm |
| Ethylene Oxide (Et0-B) | 0 to 10 ppm | 0.1 ppm |
| Ethylene Oxide (Et0-C), Ext. Range | 0 to 500 ppm | 10 ppm |
| Formaldehyde (HCH0) | 0 to 10 ppm | 0.01 ppm |
| Hydrogen (H2) | 0 to 1,000 ppm | 2 ppm |
| Hydrogen Chloride (HCI) | 0 to 15 ppm | 1 ppm |
| Hydrogen Cyanide (HCN) | 0 to 50 ppm | 0.5 ppm |
| Hydrogen Flouride (HF) | 0 to 10 ppm | 0.1 ppm |
| Hydrogen Sulfide (H2S) | 0 to 100 ppm | 0.1 ppm |
| Hydrogen Sulfide (H2S), Ext. Range | 0 to 1,000 ppm | 1 ppm |
| Methyl Mercaptan (CH3-SH) | 0 to 10 ppm | 0.1 ppm |
| Nitric Oxide (N0) | 0 to 250 ppm | 0.5 ppm |
| Nitrogen Dioxide (N02) | 0 to 20 ppm | 0.1 ppm |
| Oxygen (02) | 0 to 30% Vol. | 0.1%Vol. |
| Phosgene (C0Cl2) | 0 to 1 ppm | 0.02 ppm |
| Phosphine (PH3) | 0 to 20 ppm | 0.1 ppm |
| Phosphine (PH3), Ext. Range | 0 to 1,000 ppm | 1 ppm |
| Sulfur Dioxide (S02) | 0 to 20 ppm | 0.1 ppm |
Applications
- Fire Overhaul
- Personal protection and multi-gas leak detection in industries such as
- Chemical
- Telecommunications
- Oil and Gas (downstream)
- Food and beverage
- Wastewater treatment
Key Features
- Highly versatile and customizable for different applicaitons
- Wireless access to real-time instrument readings and alarm status from any location
- Over 25 interchangeable sensor options, including PID for VOC's, NDIR5 and catalytic for combustibles and NDIR for CO2
- Large graphical display with easy-to-use icon-diven user interface
- Continous datalogging ( 6 months for 5 sensors )
- Intelligent sensors store calibration data, so they can be swapped in the field
