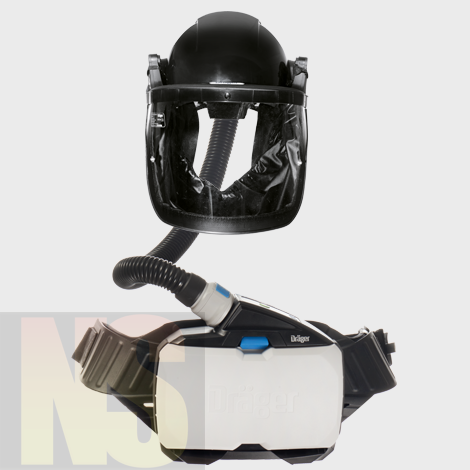

Draeger X-plore® 8000 PAPR - Power Air Purifying Respirator.
The Draeger X-plore 8000 PAPR has a heavy duty design with rubber protectors and high ingress protection (IP 65) against dust and water from any direction. A choice of a standard or long-life battery—using the latest Li-ion battery technology—provide power for at least 4 and 8 hours, respectively. Protected air intake openings ensure that sparks or water coming from the front will not be sucked into the filter. The advanced carrying system ensures optimal weight distribution. The hose connector features a 360° click adaptor. The new headpieces are designed for optimal airflow and maximum comfort to avoid eye irritation. The PAPR unit recognizes connected headgear and automatically selects the correct minimum flow rate, avoiding leakages caused by insufficient flow rates. An optical sensor prevents use without the filter and supports the right display of the saturation of the particle filter. The filter system features a plug-and-go exchange.
The system is equipped with optical, acoustic, and vibrating alarms. The entire system uses uniform color codes on all exchangeable elements and an error-proof hose connector. The Draeger X-plore 8000 PAPR was designed to be practically maintenance free, which can lead to low cost of ownership. The self-check and self-adjustment systems feature advanced temperature and pressure sensor technology to ensure the right flow rate for any environment. The simple and efficient charging system allows rapid charging (less than 3 hours for an empty battery). The unit is designed for fast and easy disassembly for cleaning and user-friendly carrying systems for standard use and decontamination applications. You can combine various components and accessories to best fit your application, and system upgrades are possible at any time.
Draeger x-plore® 8000 PAPR Technical Sheet
Draeger x-plore® 8000 PAPR Specification Sheet
Draeger x-plore® 8000 PAPR System Chart
| Facepiece Type | Part Number |
| Helmet with Visor (Black or White) | Black Helmet R58325 White Helmet R59910 |
| Protective Visor | R59900 |
| Welding Hood / Visor | R59940 |
| Standard Hoods | Standard Short - Sizes: SM/Med R59800 - L/XL R59810 Standard Long - Sizes: SM/Med R59820 - L/XL R59830 |
| Premium Hoods | Premium Short - Sizes: SM/Med R59840 - L/XL R59850 Premium Long - Sizes: SM/Med R59860 - L/XL R59870 |
Available Cartridges:
| Cartridge Type | Description | Part Number |
| HE | High Effenciency HEPA | 6739540 |
| OV | Organic Vapor | 6739575 |
| Multi-Gas | CL2,HF,NH3,MA,FM,HS,SD,HC Chlorine, Hydrogen Flouride, Ammonia, Methylamine, Formaldehyde, Hydrogen Sulfide, Sulfur Dioxide and Hydrogen Chloride. |
6739590 |
| OV/HE | Organic Vapor and HEPA | 6739560 |
| OV/AG/HE | Organic Vapor, Acid Gas and HEPA | 6739565 |
| Multi-Gas /HE | CL2,HF,NH3,MA,FM,HS,SD,HC,HE Chlorine, Hydrogen Flouride, Ammonia, Methylamine, Formaldehyde, Hydrogen Sulfide, Sulfur Dioxide and Hydrogen Chloride. |
6739570 |
Available Additional Filters -
| Pre-Filters | Description | Part Number |
| Pre-Filter | Prefilter for Cartridge, Catches large particles and/or May aid in extending the life of the cartridge 10/pkg | 6739730 |
| Odor Filter | Prefilter for Cartridge, May aid in removing nuisance odors. 5/kg * Requires larger blower cover. | 6739605 |
| Odor Filter Kit | Prefilter for Cartridge, May aid in removing nuisance odors. 1 each Odor Filter with 1 each Larger blower cover. | 6739735 |
Robust- Designed for daily use in tough environments:
Let’s face it: for your workplace, only the most rugged PAPR design will do. The Dräger X-plore® 8000 features heavy-duty design with rubber protectors and high ingress protection (IP 65) against dust and water from any direction. A choice of two battery versions incorporating the latest Li-ion battery technology provide power for at least 4 to 8 hours, respectively. Protected air intake openings ensure that sparks or water coming from the front will not be sucked into the filter.
Comfortable- Lets you focus on the task:
The Draeger X-plore® 8000 lets you do your job and forget about the PAPR you need for proper personal protection. The advanced carrying system ensures optimal weight distribution of the unit. The system provides a tight and stable connection between the belt and the unit through a special adaptor plate; a comfort pad is also available as an option. The hose connector features a 360° click adaptor. To avoid eye irritation, the system's new headpieces are designed for optimal airflow and maximum comfort.
Safe- Self-explanatory operation minimizes user error:
The Draeger PAPR 8000 unit recognizes the connected headgear and automatically selects the correct minimum flow which avoids leakages due to insufficient flow rates. An optical sensor prevents use without the filter and supports the right display of the saturation of the particle filter at any time. The filter system features plug-and-go exchange. In addition to the optical and acoustical alarm, the unit is also equipped with a vibration alarm. The entire system features uniform color codes on all exchangeable elements and an error-proof hose connector.
Easy to maintain- Efficient cleaning together with secure operation:
The Draeger X-plore® 8000 PAPR was designed to be practically maintenance free, leading to low cost of ownership. The self-check and self-adjustment systems feature advanced temperature and pressure sensor technology to ensure the right flow rate for any environment. The simple and efficient charging system allows rapid charging (less than 3 hours for an empty battery). The unit is designed for fast and easy disassembly for cleaning.
Modular- A wide range of components for every application:
The Draeger X-plore® 8000 offers a number of user-friendly carrying systems for standard and decontamination applications. To complete the system, Dräger developed a wide range of tight- and loose-fitting headgear, such as half and full-face masks, short and long hoods, and helmets with visor and protective visor. Standard and enhanced flexibility hoses are available and compatibility is ensured. You can combine various and accessories to best fit your application, and system upgrades are possible at any time.
