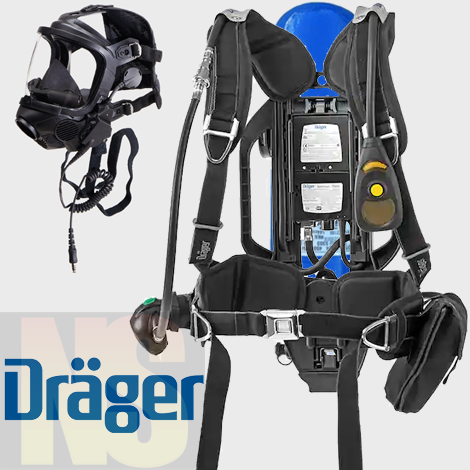

Draeger PSS 7000 NFPA 2018 SCBA HP 4500psi w/ FPS 7000 Mask
Draeger PSS 7000 NFPA 2018 Edition SCBA High Pressure 4500psi with FPS 7000 Mask -
The Draeger PSS® 7000 self-contained breathing apparatus (SCBA) provides unmatched comfort, durability, and safety in the harshest environments. Before you can protect the lives of others, you have to protect yourself. With unparalleled ergonomic performance, the PSS® 7000 combines trusted pneumatics, flexible fit, and cylinder Quick Connection, freeing the firefighter to concentrate on the task at hand.Based on feedback from firefighters throughout North America, the Draeger PSS 7000 SCBA with the Sentinel 7000 monitoring system satisfies the most rigorous demands of today's complex fire grounds. first responders. Backed by a 15-year, bumper-to-bumper warranty, the Draeger PSS 7000 distinguishes itself from other SCBAs in the marketplace with ergonomic performance, clean-ability, and toughness.
The FPS 7000 full face mask sets new standards in terms of personal safety, protection and comfort. The popularity of the FPS 7000 SCBA mask is due to a large, unobstructed field of vision and a very comfortable and secure fit, while reducing or eliminating fogging during use. The FPS 7000 mask is available in three sizes and has a double-sealed body with triple-sealing edges to conform to the shape of the face. The mask comes in highly chemically resistant EPDM rubber with a hairnet that is designed to be donned and doffed quickly and easily.
Draeger PSS 7000 NFPA Specification Sheet:
Draeger PSS 7000 NFPA SCBA.
Draeger FPS 7000 Mask Specification Sheet:
Draeger FPS 7000 Mask.
| Total Weight w/ Empty 45 min Cylinder | 25.6 lbs. (11.61 kg.) |
| Weight (backplate & harness only) | 9.35 |
| Input pressure (psi) | high-pressure, 4,500 |
| Battery Duration | 365 hrs normal use |
| Nominal first stage output pressure (psi) | 108 |
| First stage output flow (L/min) | >1,000 |
| LDV output flow (L/min) | >500 |
| Whistle activation pressure (psi) | high-pressure, 1,485 |
| Whistle sound level (dBA) | >90 |
| ADSU main alarm (dBA) | >95 |
| Operating Temperature | -22°F - 140°F |
| Approvals | NFPA 1981 & 1982, 2018 Edition |
- HP = High Pressure, 4500 PSI
- LDV = Lung Demand Valve
Innovative harness system provides unmatched comfort and durability -
The Draeger PSS 7000 SCBA is designed so the heaviest components sit at a lower center of gravity to increase stability and balance, allowing the wearer to work more effectively with less fatigue. The PSS 7000 includes an adjustable harness suspension system that provides the ultimate in comfort and extended wear. Durable webbing and advanced compression-molded comfort padding offer up to 6.5-times higher abrasion resistance than traditional padding. The material surface is easy to clean and disinfect with a highl resistance to chemical and mechanical damage. The harness has a high-grip, anti-slip inner surface that stays securely in place without a chest strap or having to over-tighten the shoulder straps. Cooling channels in the shoulder straps and waist belt reduce the likelihood of compression burns. A stainless-steel, harness-friction buckle makes the SCBA easy to don and doff.
Ergonomic three-position backplate allows freedom of movement -
The Draeger PSS 7000 is designed to move with the wearer allowing unrestricted movement while walking, crawling, or climbing. The backplate automatically lengthens and pivots to mirror wearer movements. The unique, self-adjusting and pivoting waist belt keeps the SCBA on the hips when a firefighter reaches, preventing your coat from riding up. To reduce back strain, the SCBA's weight is designed to ride on the hips. The three-position, carbon-fiber composite backplate adjusts to comfortably fit different torso lengths. A slide-and-lock harness mechanism allows the harness and waist belt to be connected or removed from the backplate quickly without tools. To minimize the risk of snagging or damage, supply hoses are integrated neatly into the backplate.
Relective -
Luminescent shoulder straps Reduce potential snag points and enhance visibility in the darkest situations
Integrated systems reduce risk and increase versatility -
To minimize the risk of damage or snagging, the Dräger Sentinel 7000 electronic system and air-supply hoses are integrated into the backplate. To further streamline and reduce snag hazards, the lung-demand valve (LDV) and Draeger Sentinel hoses are routed over the shoulders. Conventional waist-mounted hoses can also be fitted to the carrying system, making the Draeger PSS 7000 one of the most versatile SCBA systems available.
Draeger Sentinel 7000—Real-time monitoring -
The Sentinel 7000 electronic monitoring system provides options to satisfy the needs of any fire department. Incorporating a centralized power supply and pressure sensor module within the backplate, the robust system combines maximum component protection with balanced weight distribution for reduced physical stress. Housed in impact-resistant, water-resistant casings, the Sentinel 7000 demonstrates excellent reliability on the fire ground.
An electronic gauge provides real-time monitoring of essential information, including:
‒ A personal alert safety system (PASS) device
‒ Intuitive push-button operation for ease of use
‒ Configurable settings to suit individual preferences
‒ Data logging for improved post-incident analysis
‒ Accurate, continuously updated digital display of pressure and time to EOSTI activation (time based on
‒ dynamic breathing rate)
‒ Battery status display
‒ 360° visual and audible alarms triggered when the PASS is activated
‒ Automatic self-tests and system tests
Draeger FPS® 7000 Head-up Display -
One of the many benefits of the FPS® 7000 full-face mask is the headup display (HUD) required by NFPA 1981. Always within the field of view the head-up display allows easy monitoring of the cylinder contents and battery status without any manual action by the wearer.
Draeger FPS® 7000 -
The Dräger FPS® 7000 full-face mask sets the standard in safety, visibility, and comfort. Triple-sealing, the FPS 7000 comes in nine sizes and three shapes of the inner mask to ensure maximum protection by adapting to different head and face shapes.
Draeger FPS®-COM 7000 -
The Draeger FPS®-COM 7000 provides standalone hands-free communication along with optional connection to tactical radios. Voiceactivated, the FPS-COM 7000 provides full-duplex communication on one of seven user-selected channels. Up to 10 users per channel can be connected without using a tactical radio, which is especially ideal for special operations like hazardous materials response teams.
