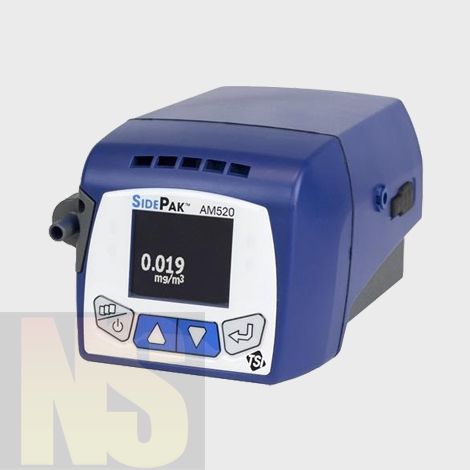

Specifications:
Sensitivity
Sensor Type: 90° light scattering, 650 nm laser diode
Calibration: Calibrated against a gravimetric reference using the respirable fraction of standard ISO 12103-1, A1 Test Dust
Aerosol Concentration Range: 0.001 to 100 mg/m3
Particle Size Range: 0.1 to 10 µm
Minimum Resolution: 0.001 mg/m3
Zero Stability: ±0.001 mg/m3 over 24 hours using 10 second time constant
Temperature Coefficient: Approximately +0.0005 mg/m3 per °C (for variations from temperature at which instrument was last zeroed)
Flow Rate
Range User-adjustable, 0 to 1.8 liters/min (L/min) Note: Upper range is dependent onimpactor or cyclone attached to the SidePak AM520 Monitor
Temperature Range
Operating Range: 32° F to 120° F (0° C to 50° C)
Storage Range: -4° F to 140° F (-20° C to 60° C)
Operational Humidity: 0 to 95% RH, non-condensing
Time Constant (OLED Display)
Range User-adjustable, from 1 to 60 seconds
Built-in Inlets
Standard inlet: Not size-specific
PM1.0 impactor: 50% cut-off at 1.0 µm
PM2.5 impactor: 50% cut-off at 2.5 µm
PM5.0 impactor: 50% cut-off at 5.0 µm
PM10 impactor: 50% cut-off at 10.0 µm
Attachable Cyclones
4 µm Dorr-Oliver: 50% cut-off at 4.0 µm
0.8 µm DPM: 50% cut-off at 0.8 µm
Alarms
Alarm Types: General, STEL
Default Settings: 0.5 mg/m3, 1 mg/m3, 3 mg/m3, 5 mg/m3, 15 mg/m3, Off
Programmable from 0.001 to 999 mg/m3 through TrakPro Software
Alarm Indicator: 95 dBA (at one foot) audible horn, blinking red LED, flashing red OLED display
Ringback Delay: 30 sec, 1 min, 3 min, 5 min, 10 min, Off
Data Logging
Data Points: Approx. 80,000 (55 days logging once per minute)
Logging Interval: User-adjustable, from 1 second to 60 minutes
User-Select Calibration Factors
Factory Setting: 1.0 (non-adjustable)
Ambient Setting: 0.38 (non-adjustable)
User-Defined Settings: 5, with user-defined labels via TrakPro Software
Range: 0.1 to 10.0, user-adjustable
Physical
External Dimensions 5.1 x 3.7 x 3.1 inch / 129.5 mm x 94 mm x 78.4 mm with 803300 battery
Weight: 22 oz (0.62 kg) with 803300 battery
Display: 160 x 128 resolution color OLED display
Tripod Mounting Nut: ¼-20 female thread
Battery
Rating: 5400 mAH Li-Ion Pack
Run Time: Greater than 20 hours at 1.7Lpm with a PM2.5 impactor
Charge Time: 4.0 hours (typical with a fully depleted battery)
Power Supply (p/n 803302)
Input Voltage Range: 100 to 240 VAC, 50 to 60 Hz
Output Voltage: 12 VDC @ 3.0A
Maintenance
Factory Clean/Calibrate: Recommended annually
User Zero Calibration: Before each use
User Flow Calibration: As needed with use of inlet conditioner
Communications Interface
Type: USB 2.0
Connector, Instrument: USB Micro-B (socket)
Minimum Computer Requirements for TrakPro Software
Communications Port: Universal Serial Bus (USB) v2.0 or higher
Operating System: Microsoft Windows® 7, 8, or 10 (32-bit or 64-bit) operating systems
Download TSI Software and Firmware Wizard: https://tsi.com/SoftwareDownloads/
Approvals
AM520 with TSI Battery Pack P/N 803300
