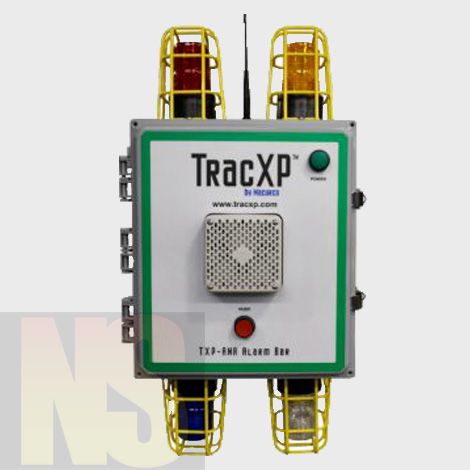

TXP-ANA Wireless Alarm Notification Assembly with 99dB Horn
$0.00
SKU
TXP-ANA Wireless Alarm with 99dB Horn
TXP-ANA Wireless Alarm Notification Assembly with 99dB Horn -
The TracXP-ANA (Alarm Notification Assembly) is a flexible, cost-effective alarm status annunciation for general purpose applications. The TXP-ANA offers optional strobe light configurations of one to four strobes, standard 99 dB or optional 120 dB horn, optional configurable Hush/Silence, and optional wireless functionality with the TXP Wireless System.
| Size | 13”(L) x 26.5”(W) x 9.25”(H) Enclosure 28”(L) x 26.5”(W) x 9.25”(H) With (4) strobes and 99 dB horn 28”(L) x 26.5”(W) x 13.5”(H) With (4) strobes and 120 dB horn |
| Weight | 17.6 lbs. With (4) strobes, wireless, and 99 dB Horn 18.2 lbs. With (4) strobes, wireless, and 120 dB Horn |
| Power Supply | 85-264 VAC input, 24 VDC output, 70W (3A) (Wireless option only) |
| Input Power | 10-30 VDC, 3 watts maximum (non-wireless) 85-264 VAC (wireless) |
| Strobe | Flash rate - 60 to 80 flashes per minute Light output - 50 effective candlepower Lamp type - Xenon Lamp life - 10,000 hour |
| Wireless Option | Wireless Input - 900 MHz Wireless Output - Frequency-Hopping Spread Spectrum (FHSS) Four Alarm Relays Independent Horn Relay |
| Temperature | -40°F to +140°F (-40°C to +60°C) |
|
Environmental Rating |
NEMA 4X/IP66 |
| Warranty | 2-year on enclosure and electronics 1-year on Xenon strobe lamp 10-year on strobe power supply |
| Part Number | Description |
| 93-6754-0000-16 | TXP-ANA, NEMA 4X POLY ENCLOSURE, 85-264 VAC, 99 DB HORN, 900 MHZ WIRELESS |
| 93-6754-0000-15 | TXP-ANA, NEMA 4X POLY ENCLOSURE, 85-264 VAC, 99 DB HORN, HUSH BUTTON, 900 MHZ WIRELESS |
TXP-ANA Strobe Kits -
| Part Number | Description |
| 95-2124-A112-00 | TXP-ANA STROBE KIT, AMBER, MALE 1/2" NPT, 12-80 VDC, NEMA 4X, WITH GUARD |
Key Features
-
Modular design with up to four strobe alarm indicators (amber, blue, clear, green or red)
-
NEMA 4X enclosure
-
Power indicator light
-
99 dB horn with configurable alarm sequences
-
120 dB horn (optional)
-
Alarm Hush button (optional)
