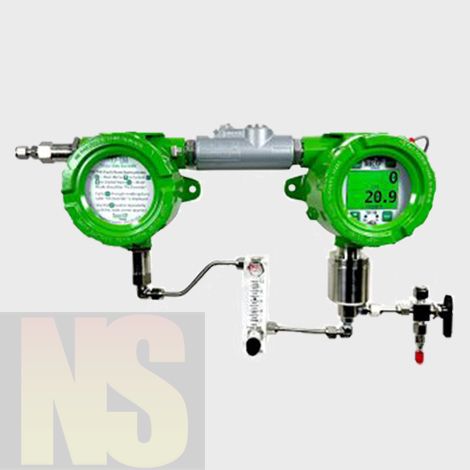

The new TracXP TXP-SDA Sample Draw Accessory is designed to pull a gas sample from limited access or hostile environment applications where typically fixed gas detectors can not be installed. The TXP-SDA, coupled with our TXP-T40 transmitter, is ideally suited for applications such as tank headspace, ducts, vessels, wet wells, sumps, confined spaces, storage bins, cabinets, and other challenging applications where sensors can not typically be directly installed.
Display | Status indicating color QVGA display shows engineering units, trend data and alarm levels |
Power Supply | 24 VDC at < 10 Watts |
Sample Pump | Long life 1.5 SLPM diaphragm pump with 24 VDC brushless motor |
Inlet / Outlet Tubing | 1/4" stainless steel tubing with compression fittings |
Housing | Cast aluminum housing with epoxy paint |
Signal Output | Single or dual 3-wire 4-20 mA current source 10/100 Ethernet with Modbus/TCP and Web Server allows remote view / configuration of TXP-T40 transmitter values and settings Dual RS-485 2-wire Modbus interface wiring junction box with power-on indication and terminations Four standard Form C Relays rated at 5A @30 VDC / 240 VAC Five LED's including Red / Green flow status indication. Green indicates flow, Red indicates flow interruption |
Sensor Options | Electrochemical: Toxics and Oxygen Catalytic Bead: Combustibles / LEL Infrared: Combustibles / LEL and CO2 |
Part Number | Description |
97-2111-3300-1S | TXP-SDA SAMPLE DRAW ASSEMBLY, SINGLE SENSOR |
Part Number | Description |
97-8000-0070-00 | TXP-SDA INLINE HYDROPHOBIC FILTER AND ELEMENT |
97-8000-0150-00 | TXP-SDA HEAVY DUTY INLET FILTER AND ELEMENT |
