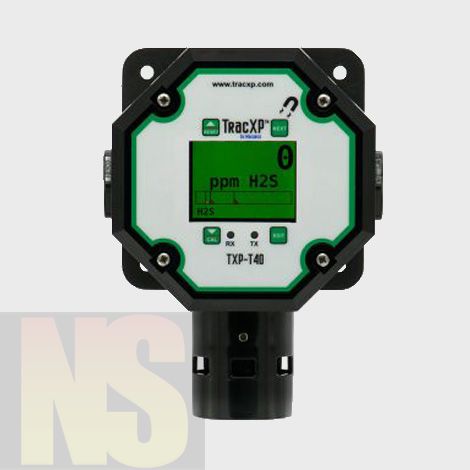

TXP-T40 Transmitter, Poly, Single Integral, C1D2

$0.00

SKU

80-5311-2000-30

Choose TXP-T40 Transmitter:

Choose Smart Sensor:

Qty:

Details

TXP-T40 Transmitter, Poly, Single Integral, C1D2 -

TXP-T40 Basic Transmitters (Outputs: Dual 4-20mA and Ethernet / Modbus TCP/IP)

The TracXP TXP-T40 transmitter is a highly configurable fixed gas detector supporting single or dual sensor applications in Class 1 Division 1 or Class 1 Division 2 environments. Local and remote sensor options allow the TXP-T40 to adapt to a wide variety of industrial applications.

TXP-T40 Data Sheet

TXP-T40 User Manual

Specifications

Size	5”(L) x 5.4”(W) x 8”(H) Aluminum Housing 4”(L) x 5”(W) x 7”(H) Poly Housing
Shipping Weight	6.5 lbs. (3 k.) Aluminum Housing 3 lbs. (2 k.) Poly Housing
Power Supply	10-30 VDC at < 10 watts with relay board (all relays energized)
Input	Channel 1 & 2: Electrochemical, Catalytic Bead, Infrared sensor
Standard Output	Dual 3-wire 4-20mA current source, (Max loop Resistance 600 ohms @ 24VDC, Ethernet R-45 with built-in web Server, Modbus® TCP)
Optional Output	Three programmable relays plus dedicated FAULT relay Dual programmable master / slave Modbus® RS-485 serial interfaces
Display	QVGA backlit color TFT 320x240
Temperature	-40°F to 140°F (-40°C to +60°C) *See Sensor Limitations
Humidity	IR Sensor: RH Non-condensing 95% Electrochemical Sensor: RH Non-condensing 85%
IP Rating	Cast Aluminum Enclosure: IP65 w/88-C200-0002-00 or 88-C200-0003-00 Black Poly Enclosure: Suitable for IP54
Approvals	Cast Aluminum Enclosure: Explosion-Proof Cl.1 Div.1 Gr ABCD w/88-C200-0002-00 Sensor Housing Non-Incendive Cl.1 Div.2 Gr ABCD w/88-C200-0002-00 or 88-C200-0003-00 Sensor Housing CSA Black Poly Enclosure: Non-Incendive Cl.1 Div.2 Gr ABCD**
